51V-105AH BATTER
Bluetooth receiver
SOC “state of charge meter”
Owners manual “SIMPLE installation instructions”
6- 3/8 battery ring terminal connectors
10-10″ tie straps
Bolt Energy USA sticker/s
Waterproof high speed charger
Mounting brackets, Nutts & bolts
AC Hardwire PORT
DECO Cover plate AC hardwire universal or club car
2-40″ 2AWG premium installation cables
Lead battery removal strap

Pro Kit Upgrade +$100  also includes 30 amp reducer & 48V- 400A solenoid

All our golf cart lithium batteries are compatible with these golf cart brands: Advanced EV, Bad Boy Buggy, Bintelli, Club Car DS, Club Car Precedent, Coleman, EZGO TXT, EZGO RXV, Elite, EPIC, Evolution, GEM Cars, ICON, Kandi, Madjax X-series, Navitas Storm, Nivel X-series, Titan, Tomberlin, Trojan EV, Vivid, Yamaha. Bolt Energy USA is compatible with many other carts and electric EV vehicles. Please contact us for more information.

MECHANICAL SPECIFICATIONS

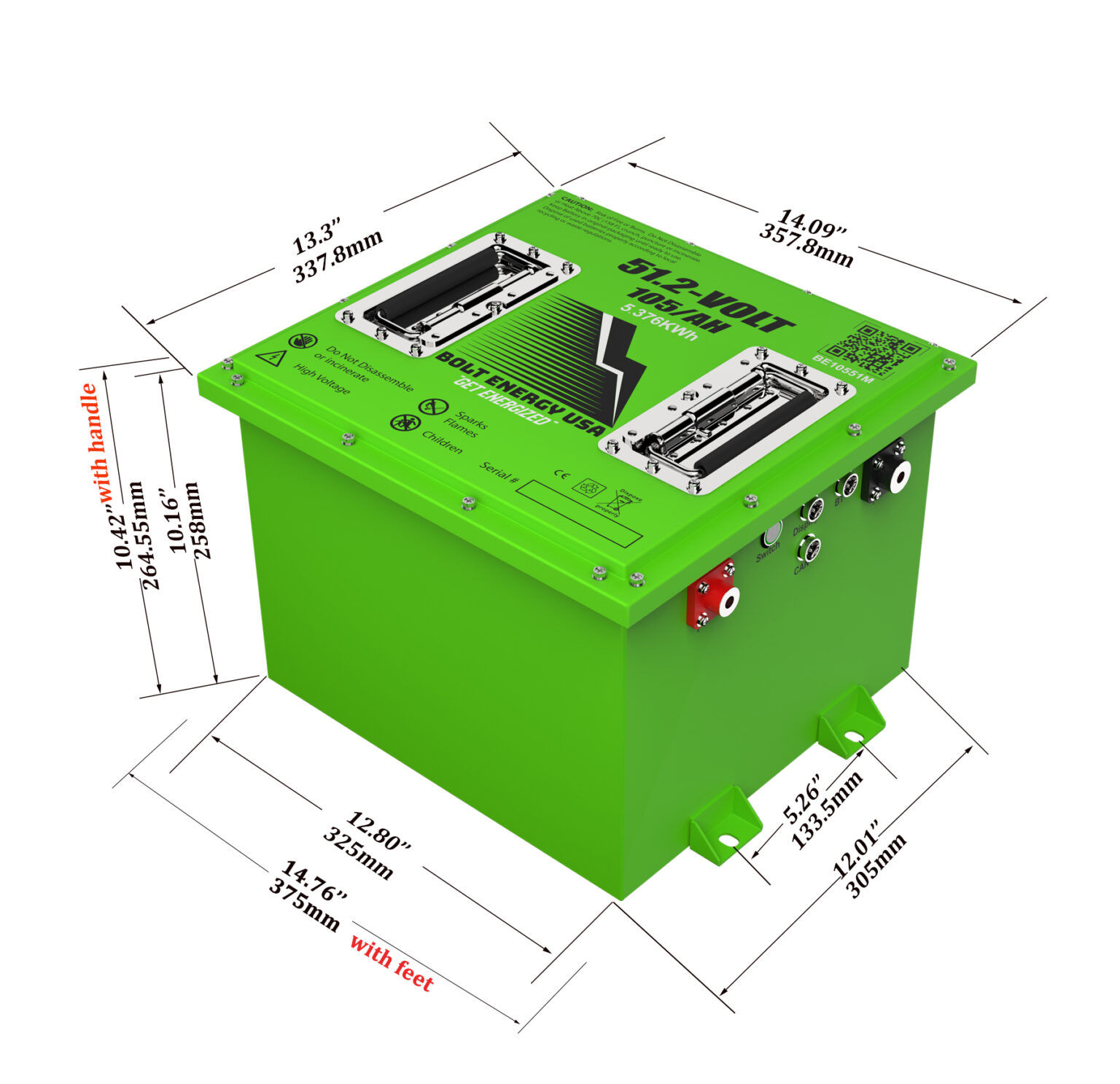

Dimensions (L x W x H): 12.8″ x 12.01″ x 10.42″
Weight: 100.8lbs (45.7kg)
Terminal Type: M8*1.5*25mm
Cell Configuration: 1P16S
Case Material: Powder Coated Steel
Enclosure Protection: Designed with IP66 Stardard
Cell Type – Chemistry: Prismatic- LiFePO4

DISCHARGE SPECIFICATIONS
Maximum Continuous Discharge Current: 250A
Peak Discharge Current: 520A ± 15.6A (30S)
BMS Discharge Current Cut-Off:
260 A ± A7.8A (50S)
520A ± 15.6A (30S)
BMS Discharge Voltage Cut-Off: 40V
Recommended Low Voltage Disconnect: 48.0V
BMS Reconnect Voltage: 41.6V
Discharge Temperature: -4 to 149°F (-20 to 65°C)

ELECTRICAL SPECIFICATION
Nominal Voltage: 51.2V
Working Voltage: 43.2 – 58.4V
Recommended Voltage: 48.0V – 57.0V
Nominal Capacity: 105Ah
Energy: 5,376Wh
Capacity @ 25A: 252 min
Efficiency: 0.99
Self Discharge: <3% per Month
